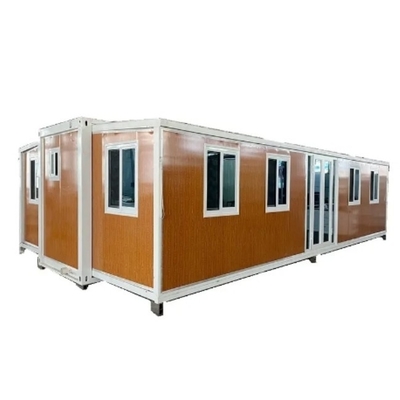

Waterproof and Fireproof Easy to Install Three Bedroom Expandable Container House
Product description:
Double-wing expansion houses are also called double-wing folding houses.They use light steel materials such as galvanized high-strength square tubes and galvanized angle irons as frames. Anti-corrosion double-sided color steel composite panels are used as walls. High-strength hinges are used to link the frames. After scientific calculation, the house can quickly expand the house space. The expanded house space is nearly three times larger than before expansion. Expansion rooms of 20 feet and 40 feet can be made, and can also be customized according to customer needs. It is a kind of house with higher technical content among container houses. The double-wing expansion room uses hinges to connect the walls. The compressed volume is greatly reduced and convenient for transportation.
Product Parameter:
40FT Expandable Container House Basic Characteristics
| Size | Folded size(L*W*H) | 11800*2200*2480mm | |
| Expanded size(L*W*H) | 11800mm*6300mm*2480mm | ||
| Structure | Main Frame | Main beam | 80*140*3.0mm Galvanized square tube |
| Column | 210*150mm*2.5mm Galvanized square tube | ||
| Secondary beam of floor |
60*40*2.0mm Galvanized square tube |
||
| Secondary beam of Roof | 40*40*1.5mm Galvanized square tube*7 or20*40*1.5mm tubex2 | ||
| Side Frame | P80*2.0mm special pipe/P65*2.0mmspecial pipe,L shape special steel sheet,2.0mm,50*70*2.0mmRectangular tube,L25*25*1.0 steel angle | ||
| anti-corrosion coating | Electro static spraying/straight plastic powder | ||
| Box top | 50mm EPS sandwich panel,0.3mmsteel sheet | ||
| Insulation layer | 50mm EPS sandwich panel | ||
| Internal ceiling | buckle board | ||
| Flooring | Middle flooring | 15mm MGO board | |
| Both sides of the floor | 15mm bamboo rubber flooring | ||
| Wall panels | 75mm fire retardant EPS sandwich panel | ||
| Electrical system | Indoor: LED ceiling lights, 3 five-hole single-open sockets, 1 single-open, 3 ten-hole sockets, 1 air conditioning socket, 1 20A leakage protector. Voltage 220V,50HZ(Optional standard) | ||
| Entry doors | 1 set of high-grade security doors 970*1970 | ||
| Windows | 4 sets of plastic steel sliding windows (920*920) | ||
| Earthquake resistance: | Grade 8 | ||
| Wind resistance: | 0.6kn/m2 | ||
| Live load capacity of floor: | 2.0kn/m2 | ||
| Wind resistance: | 0.9kn/m2 | ||
| Fire resistance: | Grace A | ||
Product Characteristics:
1). Lightweight and reliable structure: The steel structure is sturdy.with a wind resistance capacity 220-280km/h and a seismic resistance capacity 8 levels. Fully galvanized steel frame, rust proof, especially suitable for seaside and high humidity areas;
2). Time and effort saving, convenient assembly: Two skilled workers can complete the assembly of a standard unit within 3 hours;
3). Flexible combination: Multiple modular buildings can be easily combined horizontally and vertically;
4). Widely used: as warehouses, homes, villas, shops, hotels, campsites, workshops, offices, hospitals, etc;
5). High mobility: can complete lifting and easily move from one location to another.
Advantage of products:
1)Environmentally Friendly:It is free from concrete;no rubbish is produced during construction;
2)Prefab Design:All the components are prefabricated in the factory.
3)Easy Installation:Bolt connection,free from welding work on site
4)Economy:All components are assembled in the factory and shipped as a complete set, and the products are recyclable, saving costs.
5)Functionally Friendly:Water proof,thermal insulation and sound proof property
6)Flexibility:It can be moved and changed at will. Wherever you go, there is home.
Application:
family housing,warehouses, villas, bathrooms, shops, hotels, campsites, workshops, offices, hospitals temporary residence, post earthquake resettlement, highways, railways, buildings, wind power, thermal power,photovoltaics, oil, emergency response for rural dilapidated buildings, etc.
Service of Lontl Team:
1).24h online.
2).Installation guidance
3).Provide personalized customization service
FAQ:
1). Is your company a trading company or factory?
We are a factory with production capacity of 100000 tons monthly.
2). Could you please design a new and unique prefab house for me?
Absolutely!
3). What should I provide to build a prefab house?
Sketch drawing would be a better reference for us. However, you will never mind if you don't have any. Simply notify us your requirements, such as the area, usage and the storeys of the house. Before long, you'll possess an amazing design.
4). Is it difficult to install a prefab house?
Totally not. You can assemble the house independently according to the construction drawings.
5). Can the prefab house be reused after disassembled?
Of course! Our prefab house can be assembled and disassembled for several times without damage.
6). Is prefab house stable?
Yes, Our house is very strong, its life span can be up to more than 20 years.
7). What is the delivery time?
Delivery time depends on order quantities. Generally, it will be 15 days after receiving the deposit.
|
|
