| Brand Name: | Lontl |
| MOQ: | 2 Sets |
| Payment Terms: | T/T, L/C |

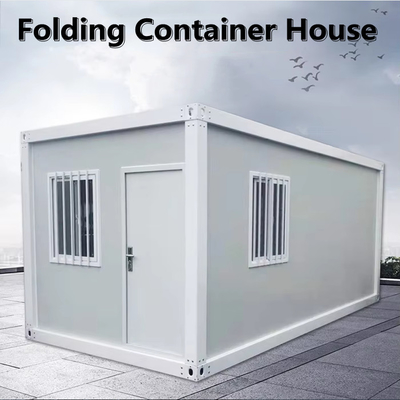

Prefabricated Z-type Folding Container House New Design 20ft 40ft house hotel
What’s the Z-Type Folding Container House ?
The Z-type folding container house is a specific type of fold-able container house that features a unique folding mechanism in the shape of the letter "Z." It is designed to provide a compact and portable housing solution that can be easily transported and expanded on-site. The Z-type folding container house offers several advantages, including efficient space utilization and quick assembly.
The Detail of the Z-Type Folding Container House:
|
Z Type Folding Container House (Standard style parameters, support customized size, thickness, color, etc.) |
||
|
Size |
External dimension (mm):2438*5850*2620 Internal dimension (mm):2278*5690*2200 Folding state (mm):2438*5800*550 Weight:About 1100kg |
|
|
Main body frame |
Top frame |
2.0mm Galvanized molded beam 5530mm length |
|
2.0mm Galvanized molded beam 2138mm length |
||
| Corner piece 210*150mm | ||
| Purlin 100*40*1.2mm | ||
| Thermal insulation cotton | ||
| 0.45mm Mongolian iron sheet color steel plate | ||
| Top rail | ||
| 0.3mm color steel suspended ceiling | ||
|
Bottom frame |
2.0mm Galvanized molded beam 5530mm length | |
| 2.0mm Galvanized molded beam 2138mm length | ||
| Corner piece 210*150mm | ||
| Galvanized square pipe 100*50*1.2mm | ||
| Stand column | 2.0mm galvanized column 210*150*2526mm | |
| Floor | Cement fibrolite plate | 18mm thickness |
| Ground | Plastic floor leather | 1.6mm thickness |
| Door | 50 Board enclosure, double-sided 04 steel door | 970*1970mm |
|
Window |
50 panel frame plastic steel single glass sliding window | 930*1200mm |
| Wall panel | Model V950 (Double Sided Orange Pattern) | 0.3mm steel plate/50mm Rock wool (80kg/m³) |
Z-Type folding Container House Structure & Technology :
How to install the Z-Type folding Container House:
Z-Type folding Container House Application/Usage:
|
|
