Z type City Folding Container House with 2 bedroom Collapsible House Easy install
What’s the Z-Type Folding Container House ?
The Z-type folding container house is a specific type of fold-able container house that features a unique folding mechanism in the shape of the letter "Z." It is designed to provide a compact and portable housing solution that can be easily transported and expanded on-site. The Z-type folding container house offers several advantages, including efficient space utilization and quick assembly.
The Size of the Z-Type Folding Container House:
| Folding House Packing List | ||
|
Product specifications |
Folded Height | H=440mm |
| Loading capacity | 1*40HQ=10 units | |
| Length*Width*Height(mm) | 5830mm*2500mm*2470mm | |
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
|
Structure |
Column | Specifications=50mm*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B |
| Roof Main Beam | Specifications=50*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B | |
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.0mm,6 Pices,Material=Q235B | |
| Ground Main Beam | Height=50*140mm,Roller beam,Material Thickness=2.3mm,Material=Q235B | |
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.5mm,9 Pices,Material=Q235B | |
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Roof | Roof Panel | EPS Color Steel Sandwich Panel,Thickness=50mm,Color=White-Gray, Falls freely into the water |
| Floor | Substrate | 18mm Fireproof Glass Magnesium Board |
|
Panel |
Insulation Cotton | 50mm Thickness Color Steel EPS Sandwich Panel,Class B Fire Protection |
| Color steel Plate | Panel Coler Streel Plate Thickness=0.4mm | |
| Door | Specification | Width*Height=840mm*1900mm |
| Material | Steel Door, Concealed Buckle Lock | |
|
Window |
Specification | 950mm*1100mm |
| Fram Material | Plastic Steel | |
| Glass | Single Glass | |
|
Electricity |
Voltage | 220V,50Hz |
| Wire | Concealed Line, Total Home Power Line 3*4 Square, Air-conditioning line 3*4 square, Socket Line 3*2.5 Square, Lighting Switch Line 2*1.5 Square | |
| Breaker | High Breaking Miniature Circuit Breaker | |
| Illumination | 1 set of 1200*300 ultra-thin LED lights, power 36W | |
| Socket | 4 Five-hole sockets 10A (or USB socket), 1 Three-hole air conditioner socket 16A, 1 Single switch 10A | |
| Other | Folding hardware | Special Parts, No Hinges |
| Standardized construction is adopted, and equipment and accessories conforming to national standards are used | ||

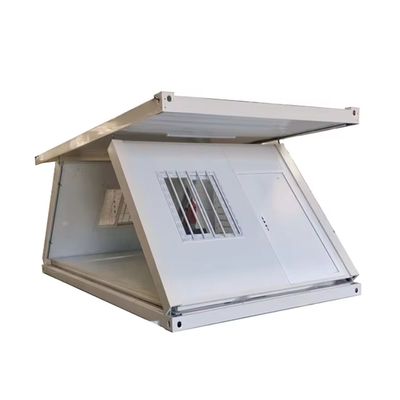

Z-Type folding Container House Structure & Technology :
How to install the Z-Type folding Container House:
Z-Type folding Container House Application/Usage:
|
|
