| Brand Name: | Lontl |
| Model Number: | F001 |
| MOQ: | 12 sets |
| Price: | US$670.00-US$1,000.00/Set |
| Payment Terms: | L/C, T/T |

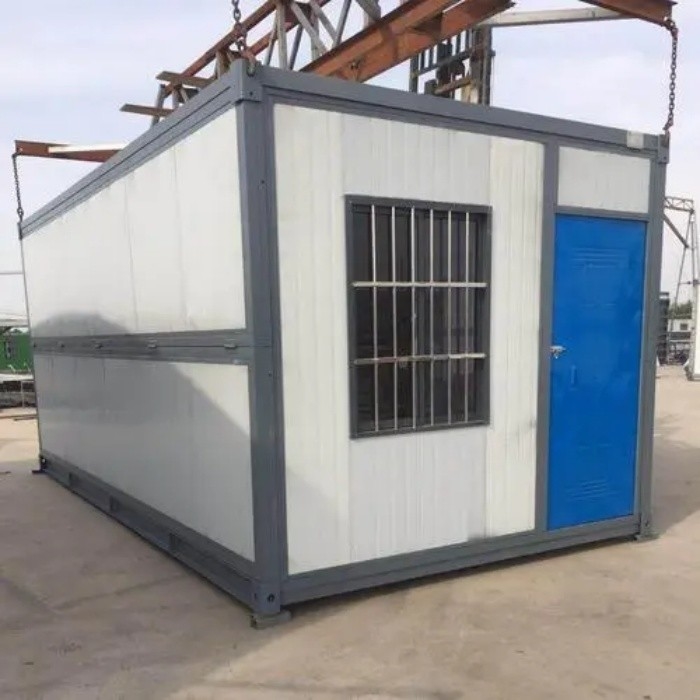

Modular And Portable Housing Structure Folding Container House Providing A Comfortable Living Space
Folding container house is the main components (side wall, end wall, box top, etc.) can be simply folded or unfolded, and can be easily combined when used again.
Collapsible container house can be collected and stacked after unloading, which will triple the number of empty containers carried by trucks or vessels on the return journey, reducing the cost of carrying empty containers by 75%.
Container house, also known as container home, container activity house, mobile container house, refers to a house with Windows and doors that is mainly based on containers and slightly modified. This kind of container house is often used as a dormitory for workers on construction sites, and some people use it as a rental house, which is durable and convenient to build. Therefore, container houses are also known as living containers.
Foldable Container Come Specification
| Folding container house Specification | ||
| Item | Specifications | |
| Dimension | External dimensions(mm) | 5800×2480×2540 |
| Internal dimensions(mm) | 5640×2320×2420 | |
| Folded state(mm) | 5800×2480×350 | |
| Weight | Total mass(kg) | 1200 |
| Design Parameters |
Structural design service life | 10 year |
| ground live load | 200kg/sq.m | |
| Roof live load | 100kg/sq.m | |
| wind load | Class 8 | |
| Seismic fortification intensity | Class 10 | |
| Frame | Overall frame paint | Electrostatic spray/straight plastic powder |
| External top plate | Galvanized sheet 0.5mm | |
| Internal ceiling | Color steel veneer V/831/0.25mm | |
| 5.8m wall panel | 70mm composite board 0.25mm+glass wool+0.25mm | |
| 2.48m wall panel | 70mm composite board 0.25mm+glass wool+0.25mm | |
| Floor | Cement Mixed Floor 15mm | |
| Electric system |
Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products comply with CE certification. | |
| Security door | Premium Security Door (Warm White) Dimensions :980mm×1970mm | |
| Window | 925×930Single glass sliding window plastic steel window, with guardrail, screen window, glass thickness 4mm (warm white) | |
| Color | It can be customized according to your request | |
Collapsible container house features:
Installation Steps:
Only 3 people for 10 mins can complete a house.
1. Lift the main frame;
2. Place support rods in the middle of the Container house;
3. Push one wall apart and fix it with the fastening screws;
4. Push the other wall with the door open and tighten the screws.
Packing & Delivery
Lontl Factory:
LONTL NEW MATERAILS TECHNOLOGY CO..LIMITED is a manufacturer for Prefab house in China. Located in Hebei Province, China.
Main Products including: Folding Container House, Expandable Container House, Flat Pack Container House.
|
